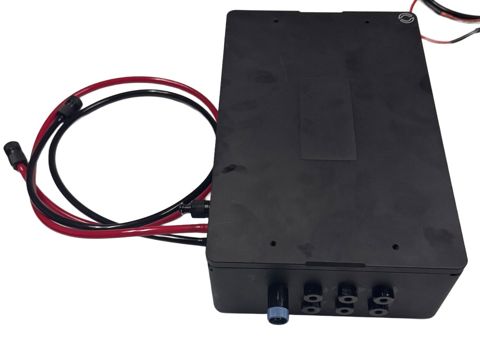

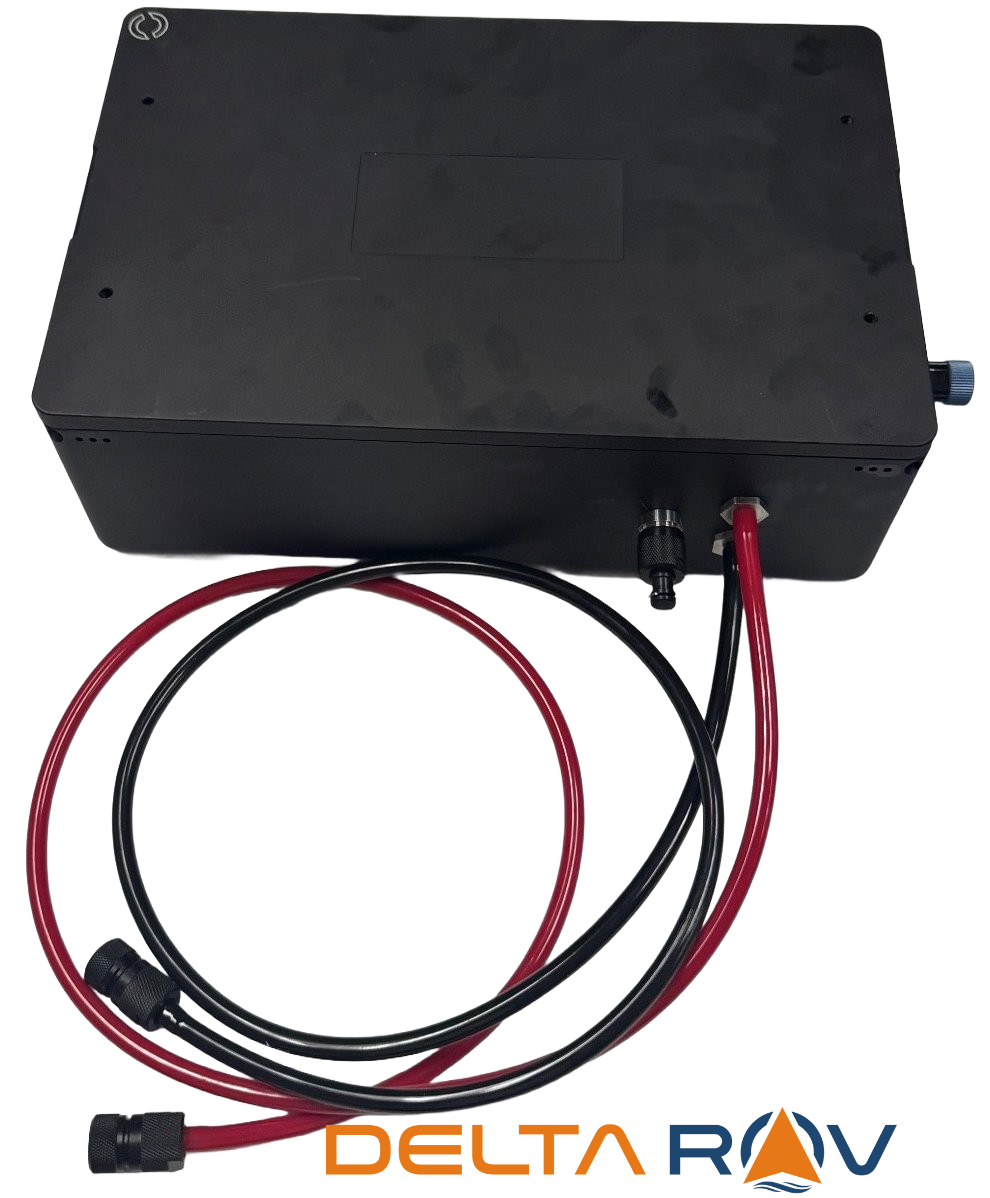

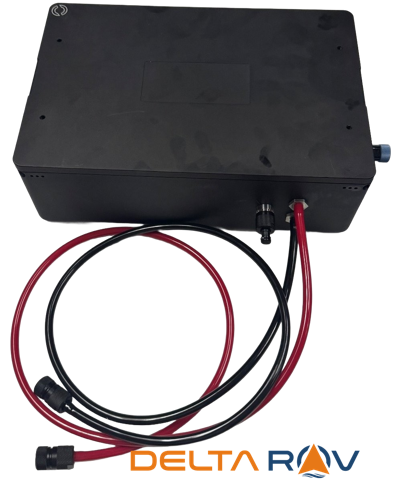

HIGH POWER ROV BATTERY PACK 4S24P
SKU DROV-HPB-001 REV1 · HS code 8507.60.00.90
Description
The Lithium-ion Battery (14.8V, 156Ah) is a high capacity custom battery pack made from high quality 65P lithium-ion cells designed for use with underwater ROVs.
Specs
Physical
| Length | 322 mm |
|---|---|
| Width | 212 mm |
| Height | 113 mm |
| Weight | 15.35 kg |
| Weight in fresh water | 7.64 kg |
| Weight in salt water | 7.44 kg |
| Depth Rating | 300 m |
Electrical

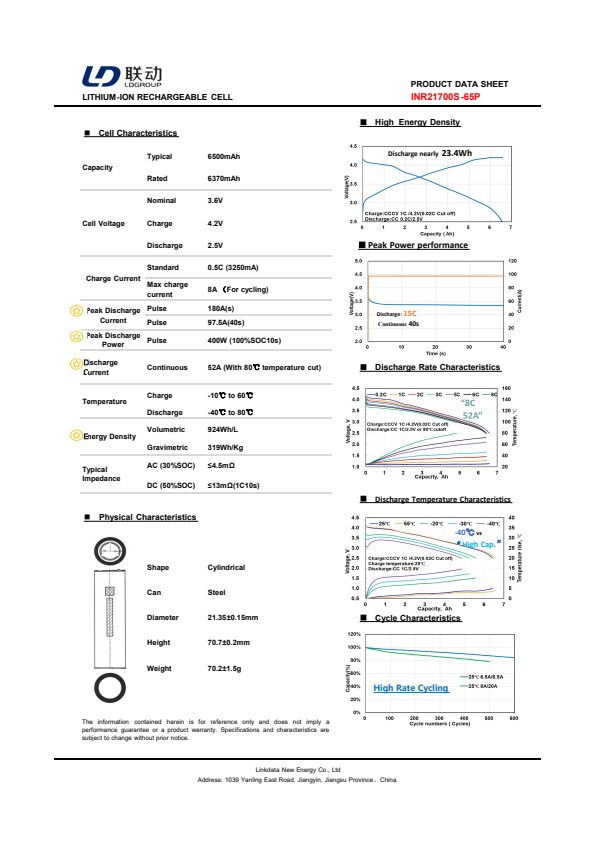

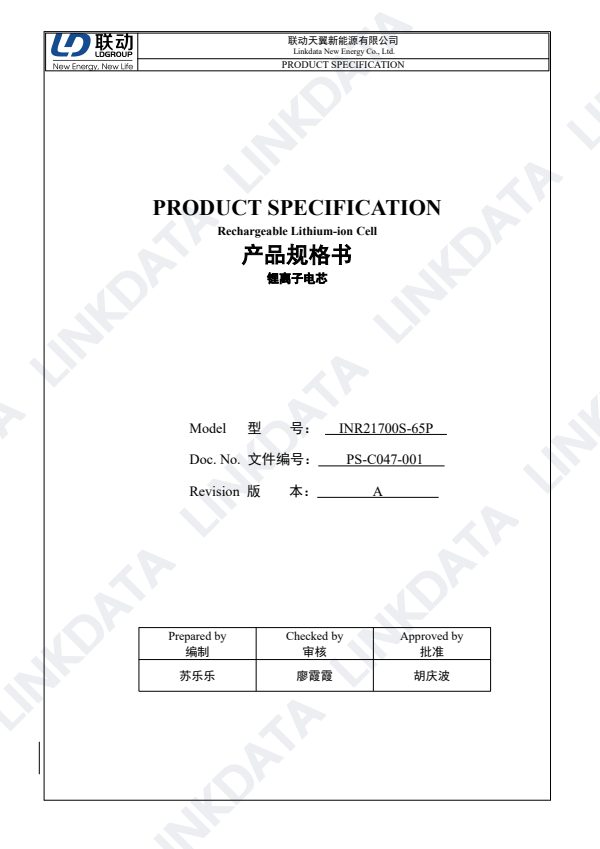

| Cells | Linkdata 65P |
|---|---|
| Cell Configuration | 4S24P |
| Nominal Capacity | 156 Ah / 2.25 kWh |
| Nominal Voltage | 14.8 V |
| Min Voltage | 10.0 V |
| Max Voltage | 16.8 V |
| Maximum Continuous Current Draw | 90 A |
| Maximum Burst Current Draw (10s) | 132 A |
| Maximum Charge Current | 20 A |
Contents

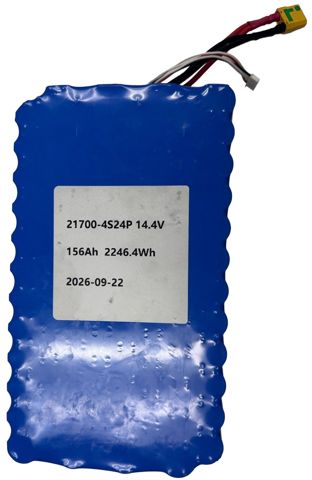

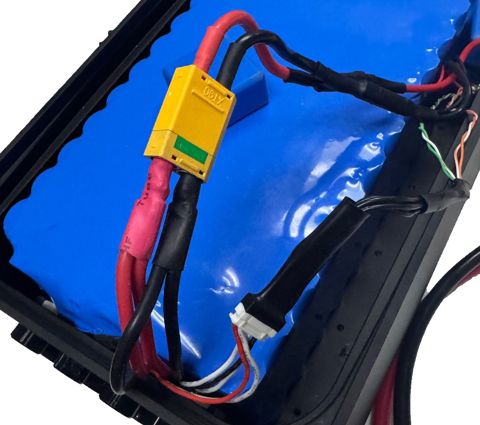

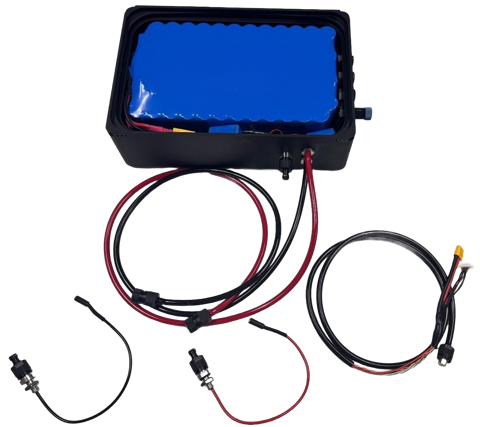

- 1 x 4S24P LINKDATA 65P 156 Ah battery assembly
- 15 x Wetlink Blank Penetrator(No hole) - M10 thread
- 1 x Pressure Relief Valve PRV-M10-ASM-R1-RP

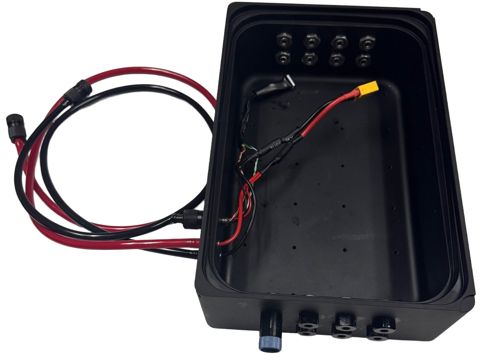

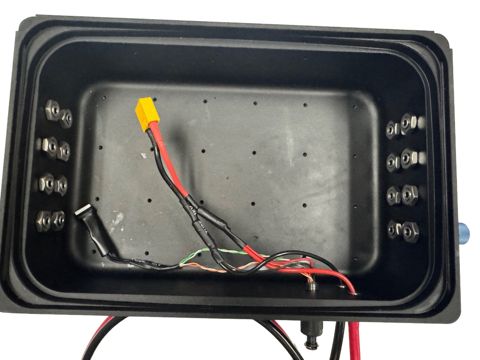

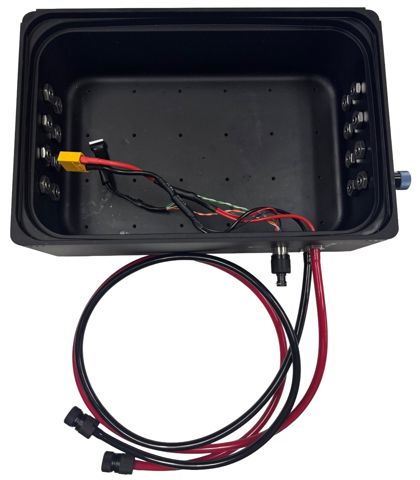

- 1 x Watertight Box 5L
- 1 x Cobalt Series Bulkhead Connector - 6-Pin Hybrid

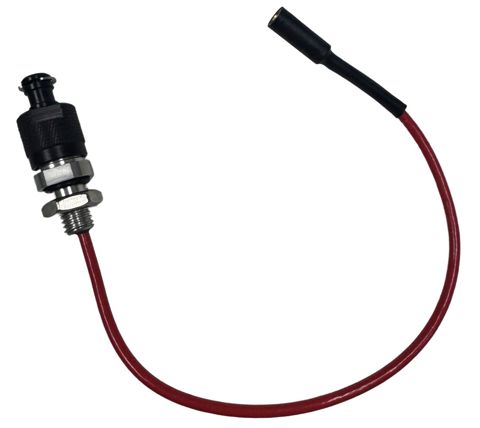

- 1 x Cobalt Series Cable red, female single-conductor with M10 simple penetrator

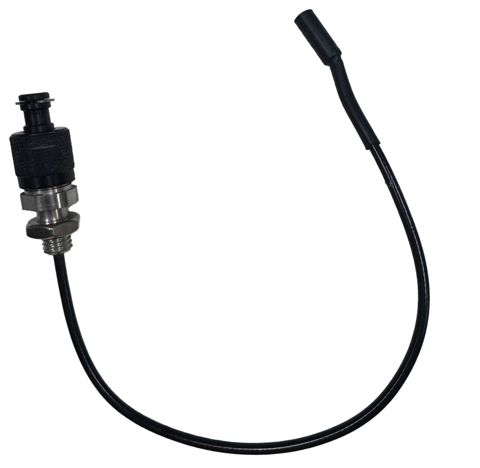

- 1 x Cobalt Series Cable black, female single-conductor with M10 simple penetrator
- 1 x Cobalt Series Bulkhead Connector - 1-Pin Red male with female pogo pin
- 1 x Cobalt Series Bulkhead Connector - 1-Pin Black female with female pogo pin
- 3 x Cobalt Dummy Plug (long with circlip)
- 3 x Locking Sleeve for Cobalt Connector
- 2 x Cobalt dummy cap

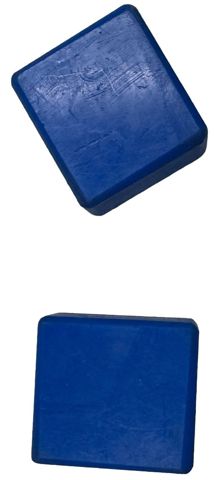

- 2 x Battery spacer

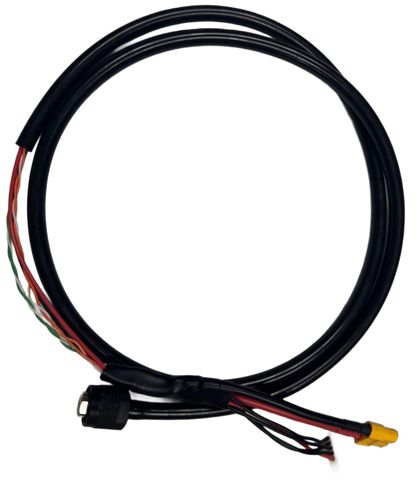

- 1 x Charging cable
Warranty
12-month return-to-depot warranty.
Includes parts and labor against manufacturing defects.
Excludes water damage and fair wear and tear.
1 year from the day you receive it.
