Surface Control Unit - Model 5
SKU DROV-SCU-005 REV1 · HS code 8537.10.91
Description

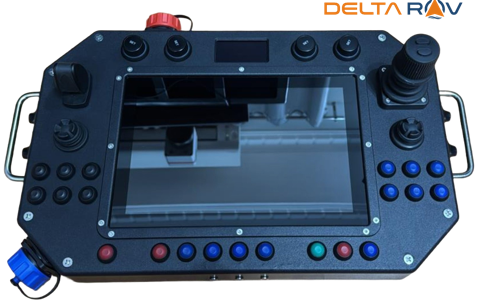

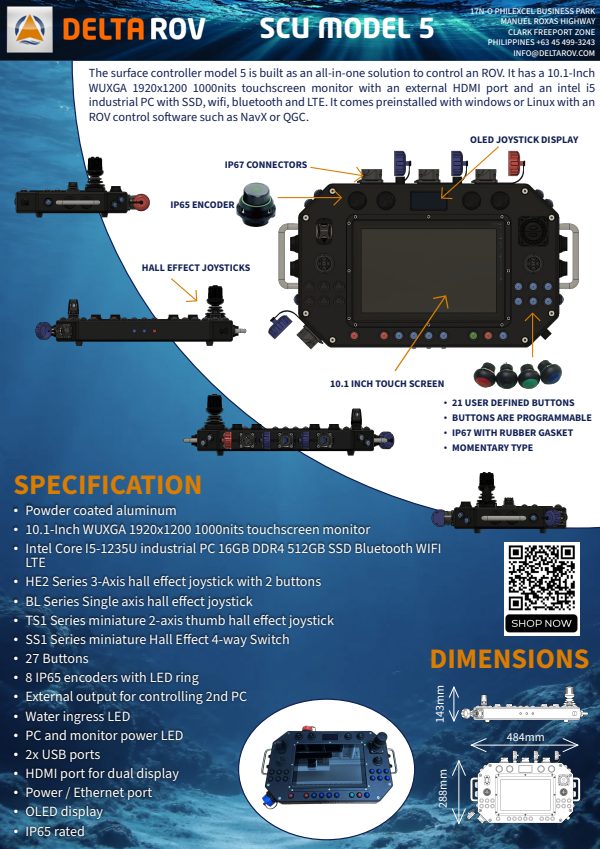

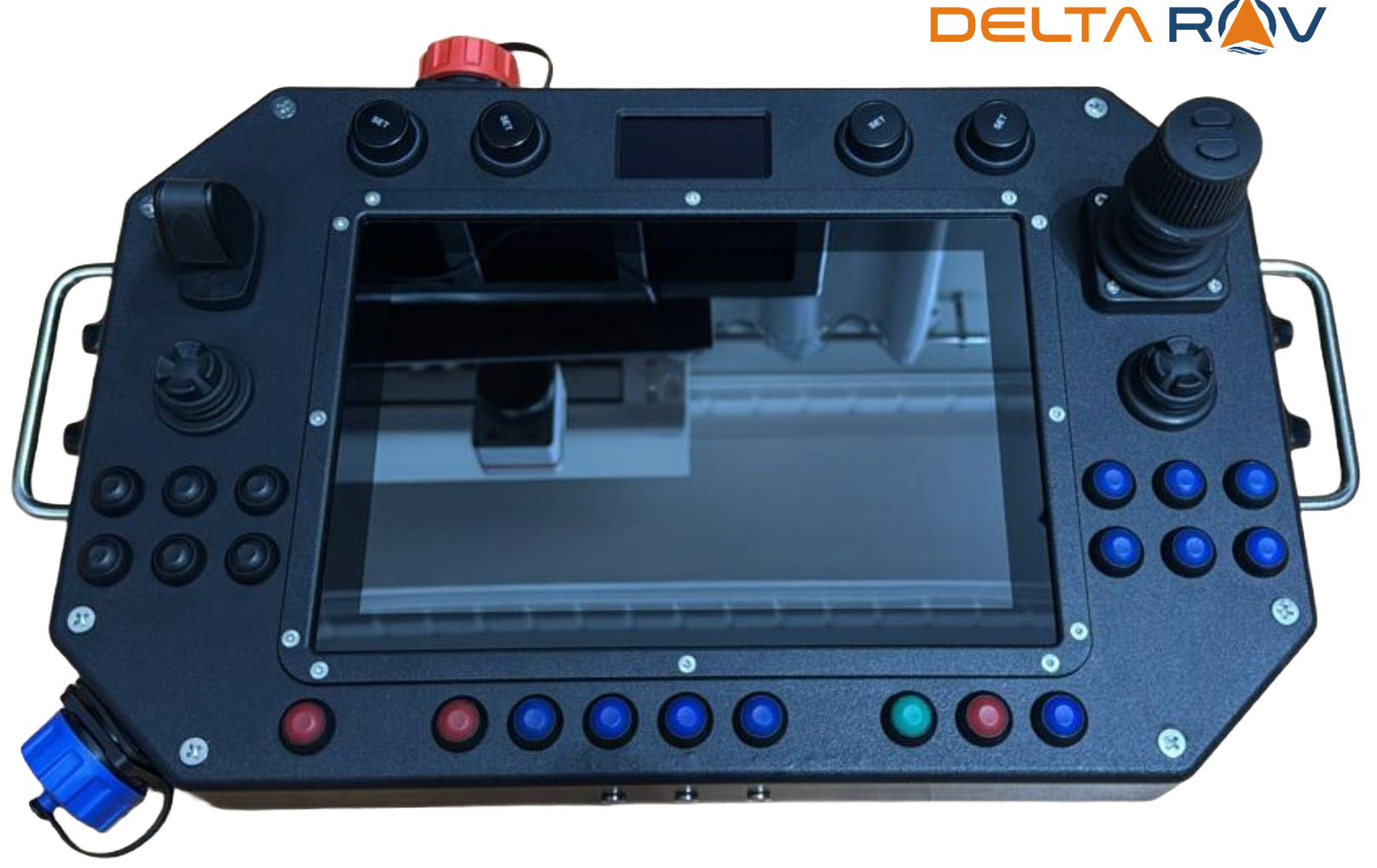

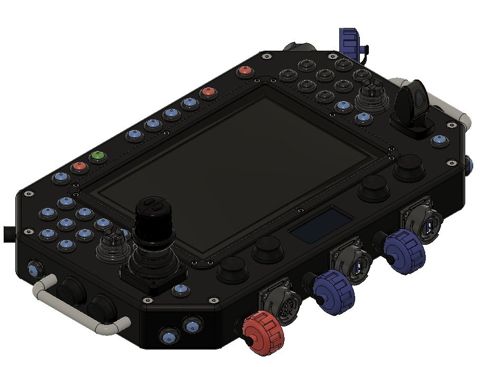

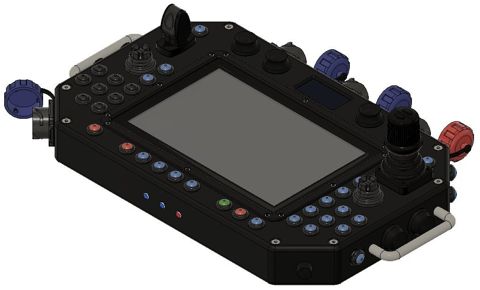

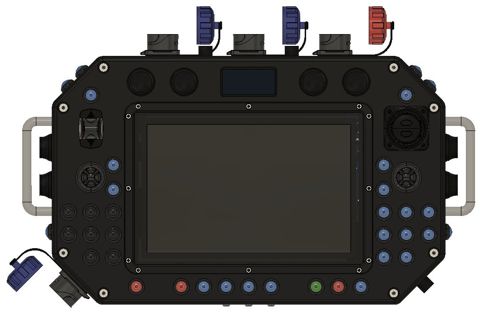

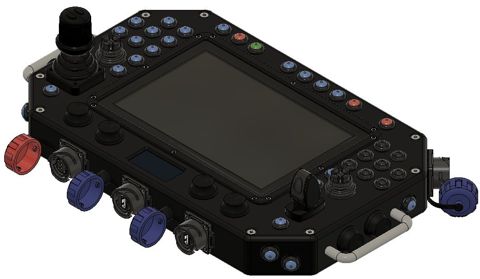

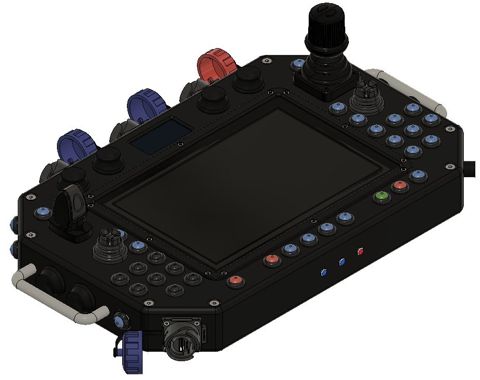

The surface controller model 5 is built as an all-in-one solution to control an ROV. It has a 10.1-Inch
WUXGA 1920x1200 1000nits touchscreen monitor with an external HDMI port and an intel i5
industrial PC with SSD, wifi, bluetooth and LTE. It comes preinstalled with windows or Linux with an
ROV control software such as NavX or QGC.
Specs
Physical
| Length | 484 mm |
|---|---|
| Width | 288 mm |
| Height | 143 mm |
| Weight | 4.4 kg |
| Material | Aluminum |
| Finish | Sand blasted and Powder coated |
| IP Rating | IP65 |
Electrical
| Input Voltage | 24 V |
|---|---|
| Max Current | 2 A |
Interface
| Processor | Intel Core I5-1235U industrial PC 16GB Bluetooth WIFI LTE |
|---|---|
| Storage | DDR4 512GB SSD |
| Primary Monitor | 10.1-Inch WUXGA 1920x1200 1000nits touchscreen monitor |
| Secondary Monitor | HDMI port for dual display FHD |
| User Interface | OLED Display and Software |
| Connectivity | Bluetooth, WIFI, LTE |
| I/O Ports | 2x USB ports, 1x HDMI port, 1x 1G Ethernet/power in port The Ethernet/Power in port is used to communicate with the ROV and supply power to the internal components. One of the USB ports can be used to control another PC (detected as xbox joystick) |
| Joysticks | Hall effect HE2 Series 3-Axis axial joystick with 2 buttons Hall effect BL Series Single Axis vertical joystick Optional TS1 Series miniature 2-axis thumb hall effect joystick (user defined) Optional SS1 Series miniature Hall Effect 4-way Switch (user defined) |
| Buttons | 10x IP65 Pre-defined system buttons - Mode Select - Gain Select - Tilt Select - Light Select - PC ON/OFF - Monitor ON/OFF - Monitor Left - Monitor Right - Monitor Menu - Monitor Exit Up to 27x IP65 User-defined buttons with custom engraving Colors available; Blue, Black, Red, Green |
| Encoders | 8x IP65 Pre-defined system encoders with LED rings - Forward Trim - Lateral Trim - Vertical Trim - Gain Control; Software, X, Y, Z - Pitch Control - Roll Control - Tilt control - Light Control |
| Indicators | 3x IP65 Pre-defined LEDs - Red SCU housing water ingress detect - Blue PC power - Blue Monitor power |
Contents
1x Surface Control Unit Model 5
1x Power Cable
1x HDMI Cable
1x USB Cable
Warranty
Return-to-depot warranty.
Includes parts and labor against manufacturing defects.
Excludes water damage, fair wear and tear and transport costs.
1 year from the day you receive it.
