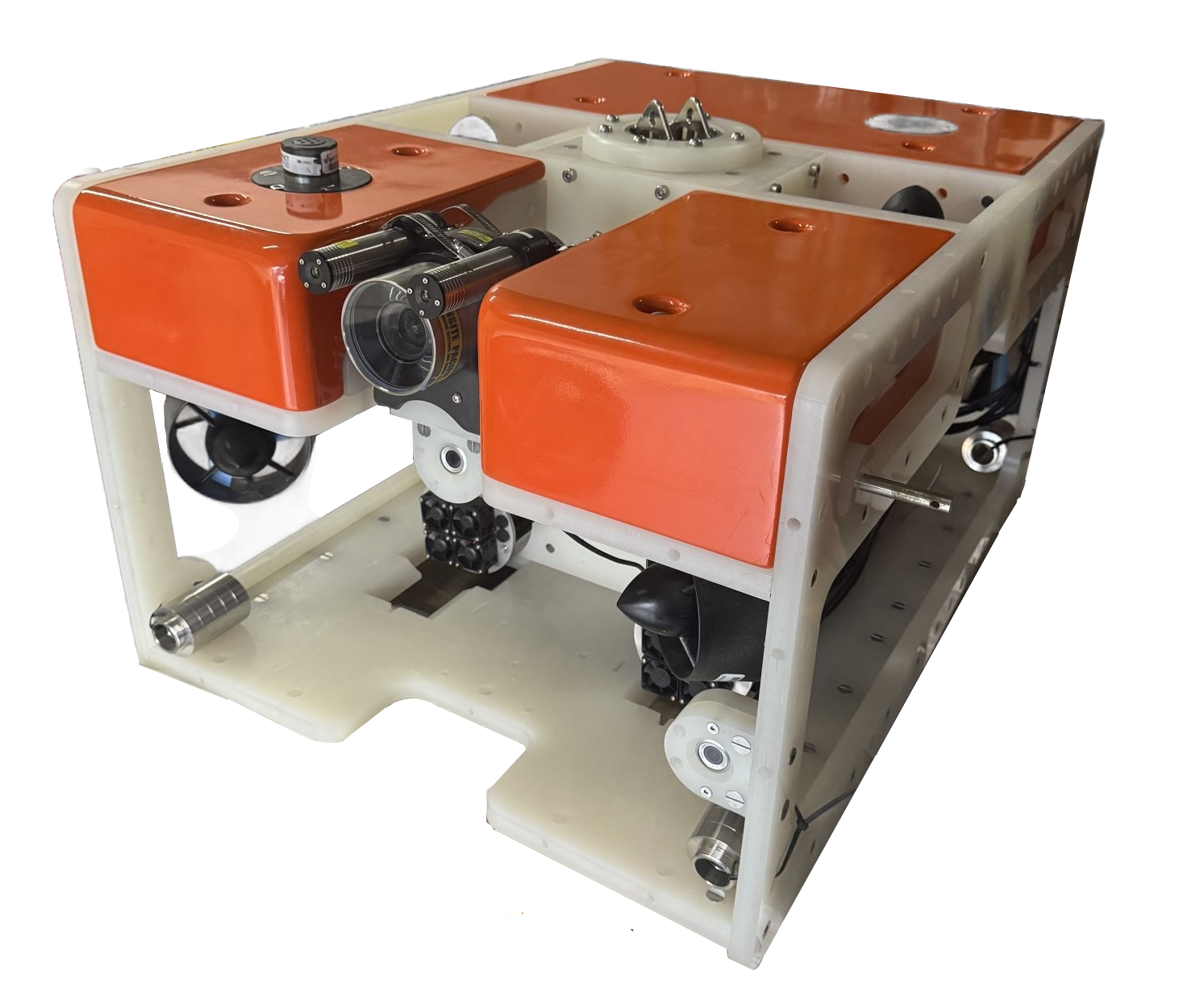

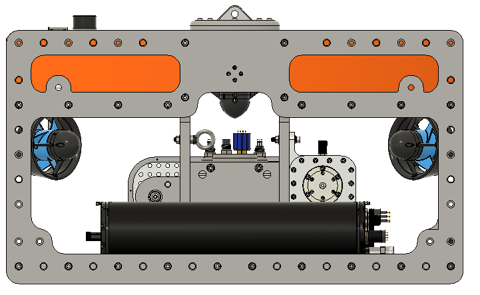

ALON MALAKI ROV
SKU DROV-ALON-MALAKI REV1
Description
Discover unmatched underwater exploration with the ALON MALAKI ROV, offered exclusively by Delta ROV. Engineered to conquer depths of up to 500MSW, this ROV boasts up to 10x A50 Thrusters and a durable polypropylene frame, ensuring peak performance in challenging environments. Equipped with a Mission robotics control system, a 10G ethernet fiber switch with 3x 10G SFP slots and 8x 1G ethernet ports, and a Delta Serial to ethernet PCB with 2x RS232/RS422/RS485 ports, seamless connectivity is guaranteed. Each ROV is taylored to your specific requirement. Let us know what you need!
Specs
Physical
| Height | 510 mm |
|---|---|
| Length | 920 mm |
| Width | 680 mm |
| Weight | Coming Soon |
| Depth Rating | 500 m |
| Finish | Pressure vessel is anodized black |
| Material | Aluminum 6061-T6, Polypropylene |
| Payload | Coming Soon |
Propulsion & Performance
| Thrusters | 6x or 10 A50 Thrusters 1000MSW rated 2 year warranty | |||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bollard Pull / Thrust | Subsea Power Supply @24VDC
| |||||||||||||||||||||||||||||||||||
| Speed | 3 knots | |||||||||||||||||||||||||||||||||||
| Vectors | Axial + Vertical |
Interface
| Processor | Jetson Nano - CPU: Quad-core ARM Cortex-A57 MPCore processor @ 1.43 GHz - GPU: 128-core NVIDIA Maxwell architecture (up to 921 MHz) delivering 472 GFLOPS of AI performance - Memory: 4 GB (or 2 GB on the entry-level variant) 64-bit LPDDR4 @ 25.6 GB/s - Display: HDMI 2.0 and eDP / DisplayPort - USB: 4× USB 3.0, USB 2.0 Micro-B - Networking: Gigabit Ethernet, M.2 Key E slot (for optional Wi-Fi/Bluetooth cards) |
|---|---|
| Control system | NavX + Delta DRCS |
| Connectivity | UbiSwitch Module 3x 10G SFP + 8x 1G - 1x SFP used for Fiber - 1x 1G used for Jetsons - 1x 1G used for DRCS 2CH Ethernet to Serial 232/422/485 (optional) |
| Control | 2x 8-CH 24VDC switch 2x External USB I/O 2x External Analog control (for lights) |
Electrical
| Input Voltage | 420-800 V |
|---|---|
| Maxumim Power | 3000W per power brick / 2x Trusters, 1x Sensors, 1x, Electronics |
| Low voltage Insulation Monitor | 2-CH alternating Megacon GFD for Thrusters / Sensors (isolated) Isolated internal electronics not monitored |
Contents
1x Polypropylene frame
2x Pressure vessel 500mm long 5inch diameter (Separate power and electronics)
1x On board electronics package
4x 420V-800V IN 24V/125A OUT 3KW Subsea power system
1x PWM Tilt gearbox and platform
1x BAR100XT Depth Sensor
6x or A50 Thrusters c/w connectors (10x optional)
1x Integrated buoyancy 500MSW rated
Camera and sensors additional
Warranty
Return-to-depot warranty.
Includes parts and labor against manufacturing defects.
Excludes water damage, fair wear and tear, transport cost.
1 year from the day you receive it.
